Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU、3*LAN、4 * RS232 (COM1/2/5/6) 1 * RS232/RS485/RS422 (COM3) 1 * RS232/RS485 (COM4)
| Specification | ||

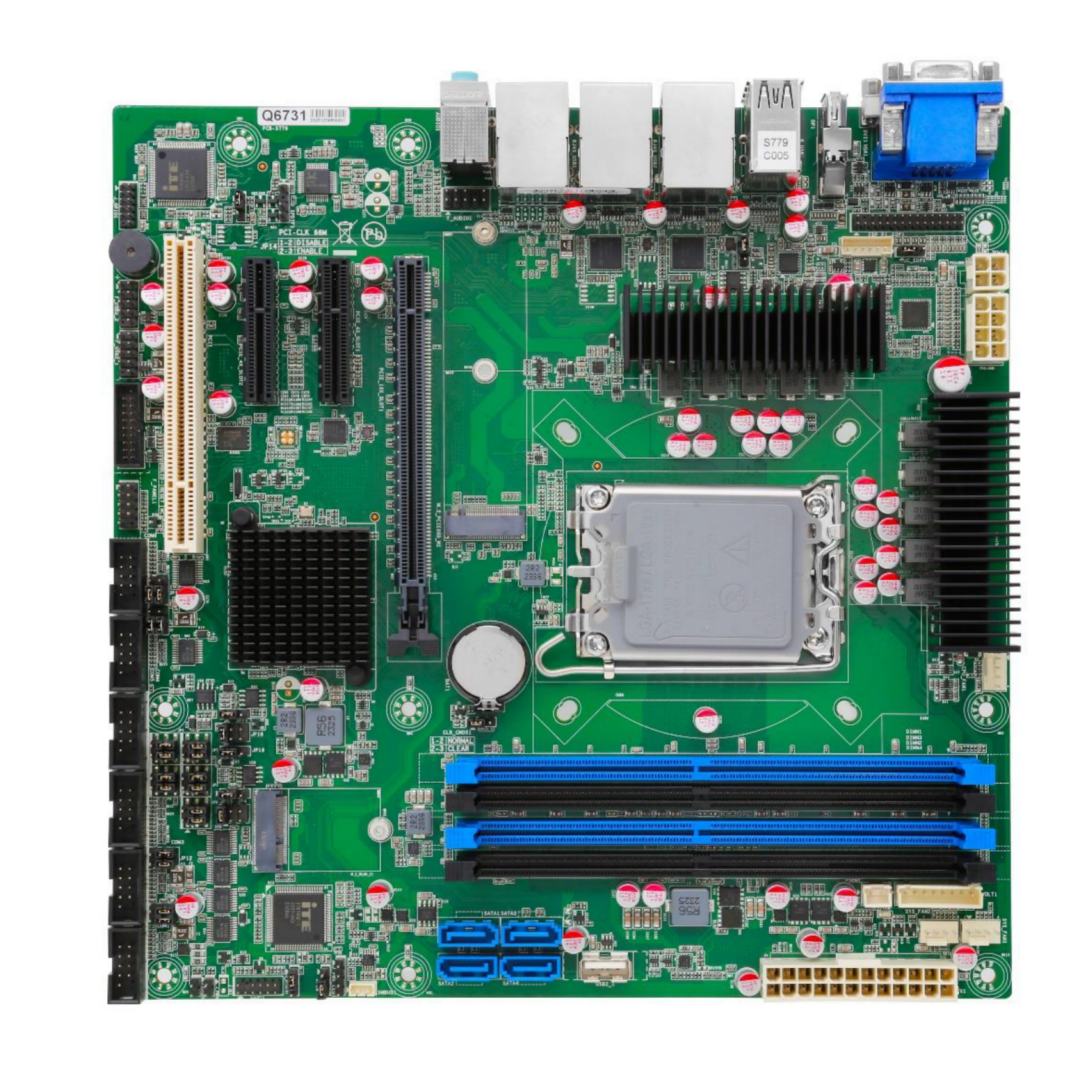

| Model | HE-Q670-MA-RC-X81 | |
| CPU | Support Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU, LGA1700 Support MAX CPU TDP: 8+8 Core 125W | |
| Chipset [1] | Intel® Q670, TDP 6W | |
| Display [2] | 1 * DP (TYPE-A): max resolution up to 4096 x 2160@30Hz 1 * DVI-D (24P/F): Support DVI-D, max resolution up to 1920x1200@60Hz 1 * VGA (DB15/F): max resolution up to 1920x1200@60Hz 1 * eDP (Header): max resolution up to 4096x2304@60Hz | |
| Memory [3] | Support DDR4-3200MHz, 4 * Non-ECC U-DIMM Slot, up to 128GB | |
| Storage | 4 * SATA3.0 7PConnector 1 * M.2 Key-M Slot (PCIE 4x/SATA, Support PCIe 4x Gen4 NVMe/SATA SSD, Auto Detect, 2242/2280) | |
| Ethernet | 2 * Intel® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel® i226-V 2.5G LAN Chip (10/100/1000/2500Mbps) | |
| Audio | Realtek Audio HDA Codec, 1 * FrontAudio Header (Line-Out + MIC) 1 * SPDIF Out Header 1 * Line-out + Line-in + MIC 3.5mm Jack | |
| Expansion Slots | 1 * PCIE 16x Slot 1 * PCI Slot 1 * PCI CLK 66MHz/33MHz Select Jumper 2 * PCIE 4x (PCIE 4x Signal) 1 * M.2 Key-E Slot (PCIE +USB2.0, Support WiFi+ Bluetooth, 2230)[4] | |
| COM | 4 * RS232 (COM1/2/5/6, BOX Header) 1 * RS232/RS485/RS422 (COM3,BOX Header) [5] 1 * RS232/RS485 (COM4, BOX Header)[5] | |
| USB | 8 * USB3.0 (TYPE-A, Rear IO) 2 * USB2.0 (TYPE-A, Rear IO) 2 * USB3.0 (Header, Internal) 1 * USB2.0 (Vertical TYPE-A, Internal) 3 * USB2.0 (Header, Internal)[4] | |
| Other Ports | 1 * 8-bit GPIO Header 1 * Front Panel Header 1 * CPU FAN Wafer 2 * System FAN Wafer 1 * Case Open Header 1 * DNX Force Reload Disable/Enable Select Jumper 1 * Watch Dog Reset Enable/Disable Select Jumper 1 * SMBUS Wafer 1 * Power On Wafer 1 * Power Monitor Wafer 1 * AT or ATX Select Jumper 1 * Power LED Wafer | |
| TPM | SLB 9670VQ2.0, TPM2.0 (Not onboard by default), Support Intel PTT Default | |
| System | Windows 10 IoT Enterprise 2021 LTSC, Windows 10 (21H2), Windows 11 (21H2) orlater, Linux Kernel 5.17 or later | |
| Temperature | Storage: -20~75℃ Operating: 0~60℃ | |
| Humidity | 5~95%, non-condensing | |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | |
| Power Supply | ATX Standard (24P + 8P + 4P) 1 * ATX 4P CPU Power Input Connector 1 * ATX 8P CPU Power Input Connector 1 * ATX 24P Power Input Connector | |
| Factor | 244mm*244mm | |
