Intel® 6/8/9th Generation CoreTM/Pentium®/Celeron®Desktop processor、 Intel® I219V/I210AT GbE Ethernet Controller 、4, RS232, COM1/2/5/6 1, RS232, COM3
| Specification | ||

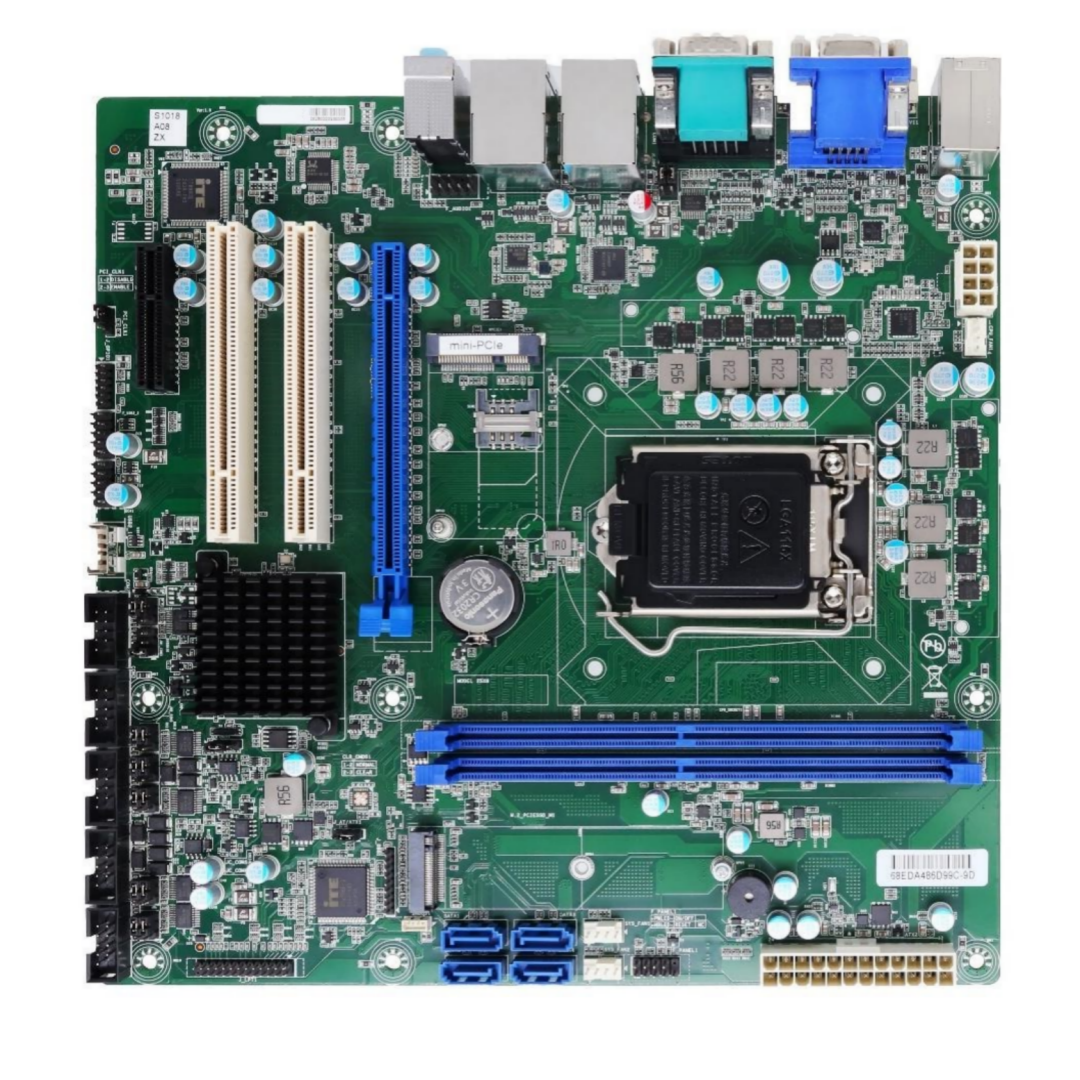

| Model | Model | HE-Z390-MA-RC-X8 |
| Processor System | Processor | Support Intel® 6/8/9th Generation CoreTM/Pentium®/Celeron® Desktop processor, LGA1151 Support MAX CPU TDP: 65W PL1 |
| PCH | Intel® Z390, TDP 6W | |
| BIOS | AMI UEFI BIOS | |
| Memory | Slot Type | 2, DDR4 Non-ECC U-DIMM |
| Memory Type | DDR4 2666 MHz | |
| Max Memory | 2*32 GB | |
| Channels | Dual | |
| Display | HDMI1 | 1, HDMI, max 4096*2160@30Hz |
| VGA | 1, VGA max 1920x1200@60Hz. | |
| DVI | 1, DVI-D, max 1920x1200@60Hz | |
| Multi-Display | Triple | |
| Audio | Codec | Realtek Audio HDA codec |
| Audio | 1, Line-Out + MIC +Line-in 1, Line-Out + MIC | |
| Storage | SATA | 4, SATA Gen3 6Gbps |
| M.2 SSD | 1, M.2 M-Key 2280, PCIe Gen3 X4 /SATA, support NVMe/SATA SSD, Auto Detect | |
| Expansion Slot | MINI-PCIe | 1, MINI-PCIe, PCIE+USB2.0, support WiFi+ Bluetooth/4G |
| PCIE X16 | 1, PCIE 16x Slot | |
| PCIE X4 | 1, PCIE 4x Slot | |
| PCI | 2, PCI port, support 33MHz/66MHz Select by Jumper | |
| SIM | 1, Full Size SIM | |
| Ethernet | Chipset | 1, Intel® I219V GbE Ethernet Controller 1, Intel®I210AT GbE Ethernet Controller |
| PXE/RPL Boot | Yes | |
| Wake On LAN | Yes | |
| USB | USB3.0 | 4, USB3.2 5Gbps |
| USB2.0 | 7, USB2.0 | |
| I/O | Serials | 4, RS232, COM1/2/5/6 1, RS232, COM3 Notes: COM3 BOM optional RS485 or RS422. COM4, BOM optional RS485 |
| Parallel | 1 | |
| SMBus | 1 | |
| FAN | 1, CPU FAN 2, System FAN | |
| PANEL | 1, PWR On +Reset +PWR_LED +HDD_LED | |
| Case Open | 1 | |
| PS/2 | 1 | |
| AT/ATX Select | 1, defaultATX mode | |
| CMOS Clear | 1, default normal | |
| GPIO | GPIO | 8, 4* GPI+ 4* GPO, non-isolated 3.3V Note: BOM optional support 5V. |
| Power | Power in | 2, Internal ATX 12V |
| RTC | 1, CR2032 Battery | |
| Others | TPM | fTPM2.0 Notes: BOM optional support dTPM2.0, SLB9670. |
| Watch Dog Timer | System reset, programmable 1-255 sec or min, | |
| HW Monitor | System-temp, CPU-temp, Voltage-12V,5V,3.3V, Vcpu, Vddr | |
| OS | OS Supported | Windows 10/11 64bit, Linux |
| Environment | Temperature | Operation: 0 ~ 60℃ Storage: -20 ~ 75℃ |
| Humidity | 5 ~ 95%, non-condensing | |
| Mechanical | Dimension | 243mm * 243mm |
| Height | PCB: 1.6mm | |
