6/8/9th Generation Intel® Core /Pentium/Celeron Processors、2*LAN、1 * RS232 (COM1, DB9/M) 3 * RS232 (COM2/5/6) 2 * RS232/RS485 (COM3/4）
| Specification | ||

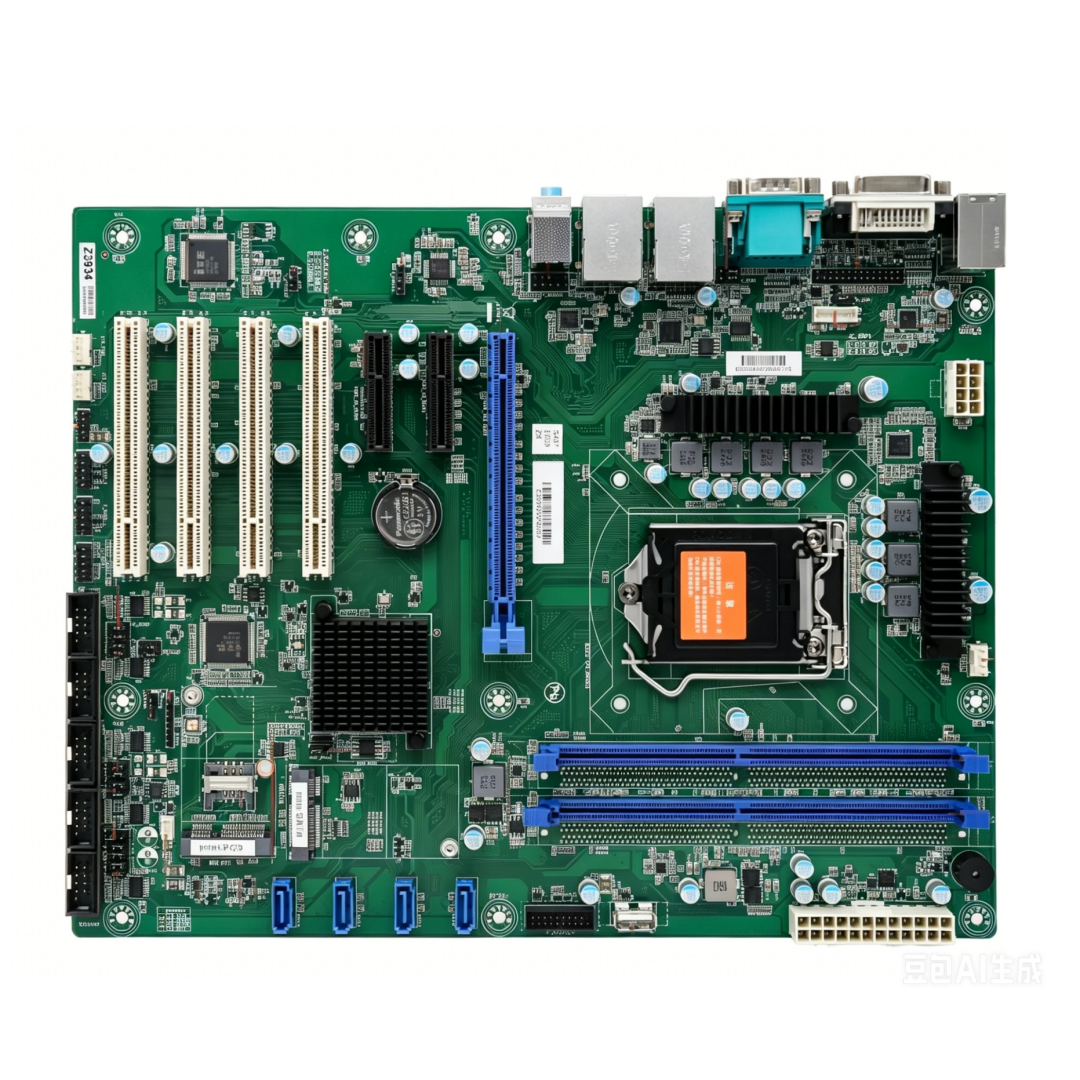

| Model | HE-Z390-A-RC-A | |
| CPU | Support 6/8/9th Generation Intel® Core /Pentium/Celeron Processors, LGA1151 Support MAX CPU TDP: Hexa-Core 95W (Do not support Octa-Core 65W/95W CPU) | |
| Chipset | Intel® Z390, TDP 6W | |
| Display [1] | 1 * DVI-D(DVI-I): Support DVI-D with max resolution up to 1920x1200@60Hz 1 * HDMI 1.4b (TYPE-A): Support max resolution up to 4096x2160@30Hz 1 * VGA (DB15/F): Support max resolution up to 1920x1200@60Hz 1 * eDP: Support max resolution up to 1920x1200@60Hz | |
| Memory [2] | Support DDR4 2400/2666 MHz, 2 * U-DIMM Slot, up to 64GB | |
| Storage [3] | support RST RAID 0,1,5,10 4 * SATA 3.0 Connector, 1 * Mini SATA Slot (mSATA) | |
| Ethernet | 1 * I219-V GbE LAN Chip (RJ45, 10/100/1000 Mbps) [4] 1 * I226-V GbE LAN Chip (RJ45, 10/100/1000 Mbps) [5] | |
| Audio | Realtek HDA Codec, 1 * Line-Out + MIC + Line-In 3.5mm Jack 1 * Front Audio Header (Line-Out + MIC) 1 * SPDIF Out Header | |
| Expansion Slots | 1 * PCI-E 16X (PCI-E 3.0, 16X Slot) 2 * PCI-E 4X (PCI-E 3.0, 4X Slot) [6] 4 * PCI Slot 1 * Mini PCI-E Slot (WIFI+4G/3G, with 1* SIM Card Slot) [6] | |
| COM | 1 * RS232 (COM1, DB9/M) 3 * RS232 (COM2/5/6, Header) 2 * RS232/RS485 (COM3/4, Header) | |
| USB [7] | 4 * USB3.0 (Rear I/O, TYPE-A) 2 * USB2.0 (Rear I/O, TYPE-A) 2 * USB3.0 (Internal, Box Header) 1 * USB2.0 (Internal, Vertical TYEP-A) 4 * USB2.0 (Internal, Header) | |
| Other Ports | 8 * GPIO 1 * PS/2 Connector (Keyboard & Mouse) 1 * Front Panel Header 2 * System FAN Header 1 * CPU FAN Header 1 * SMBUS Header 1 * Case Open Header 1 * AT or ATX Select Jumper | |
| TPM | Supports onboard TPM 1.2/2.0 (optional, onboard by default) | |
| System | Windows 10, Linux | |
| Temperature | Storage: -20~75℃ Operating: 0~60℃ | |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | |
| Power Supply | ATX Standard (24P + 8P) 1 * ATX 8P CPU Power Input Connector 1 * ATX 24P Power Input Connector | |
| Factor | ATX Standard (305mm * 244mm) | |
