HM315

Intel®Alder Lake-N series N97/i3-N305、3x LAN、1x RS-232/422/485，1xRS-232，2x RS-232/485

Intel Alder Lake-N series N97/I3-N305
Single-channel DDR5-4800, with a maximum memory capacity of 16GB
5x LAN (4x Intel i210；1x Realtek RTL8111H) 1x RS-232/422/485；1x RS-232；2x RS-485
3x USB 3.0；1x USB 2.0
8DI，8DO（10K）；8DI，8DO（200K
Support expansion of 4G/5G and Wi-Fi 6 wireless communication modules
DC9-36V, support optional UPS module expansion

OLED production control/SoftPLC motion control/Machine vision inspection/MES edge gateway/AGV vehicle control/Packaging automation

Product Parameters
System parameters	CPU	Intel^®Alder Lake-N series N97/i3-N305
	Chipsets	Intel^®SoC Integrated
	BIOS	AMI 128Mbit SPI Flash
	Memory	2x SODIMM DDR5，MAX 16GB
	Storage	1X M.2 2280 SSD (SATA)
External I/O	Display	1x DP，MAX 4096 x 2304@60Hz 1x HDMI，MAX 4K/2K@60Hz
	LAN	2x LAN，Intel^®i210 GBE 1xLAN，Realtek RTL8111H GbE
	COM	1x RS-232/422/485，1xRS-232，2x RS-232/485
	USB	3x USB3.0；1xUSB2.0
	DIO	8DI，8DO（10K）；8xDI，8xDO（200K）
	Power	1x Power Switch Button
Others	Remote	Support remote switching, integrated in the power supply part
Others	Reset	Support BIOS reset by long-pressing the power button when shutdown
Internal Expansion	USB	1xInternal USB2.0(Pin)，1xUSB2.0 Type-A
	M.2	1xM.2 3042/3052，support 4G/5G；1xM.2 2230，support WIFI
	SIM	1x Nano SIM
System	OS	Windows 10 IOT LTSC、Linux
Power supply	Input voltage	24V DC IN，4PIN Phoenix
Power supply	Power	MAX 60W
Mechanical parameters	Installation	Wall-mounted installation (rail optional)

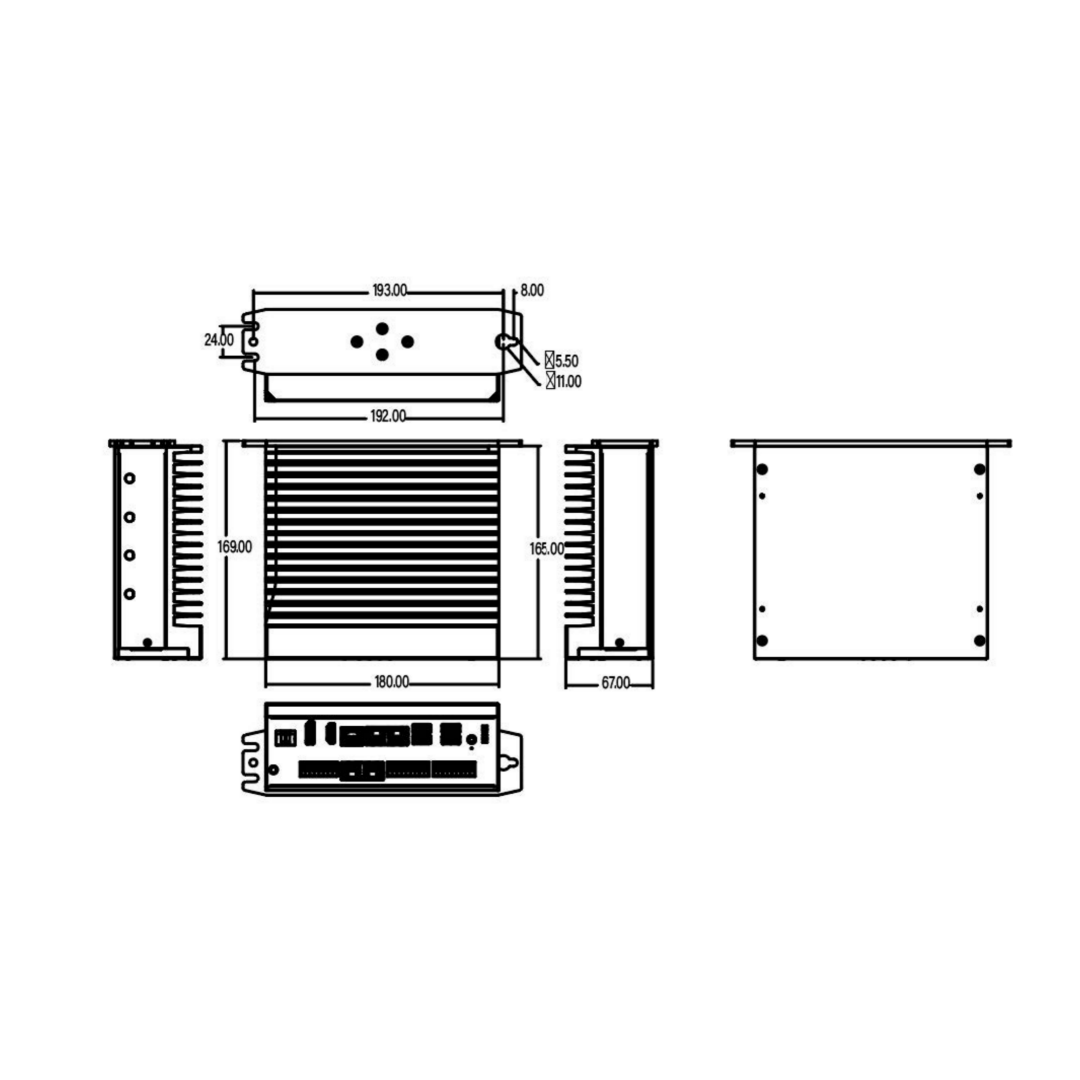

	Dimensions	180x165x67mm
	Net weight	2kg
Environmental Parameters	Operating temperature	0~50^oC，with an air flow of 0.7 meters per second
	Storage temperature	-20^oC~60^oC，60^oC@95%（non-condensing）
	Relative humidity	10~95%@40^oC(non-condensing)
	EMC	CE、FCC
