Intel®Alder Lake-N N97/i3-N305、3x LAN、1x RS-232/422/485，1xRS-232
OLED production control/SoftPLC motion control/Machine vision inspection/MES edge gateway/AGV vehicle control/Packaging automation
| Product Parameters | ||
| System Parameters | CPU | Intel®Alder Lake-N N97/i3-N305 |
| Chipsets | Intel®SoC Integrated | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | 1x SODIMM DDR5，MAX 16GB | |
| Storage | 1X M.2 2280 SSD (SATA) | |
| External I/O | Display | 1x DP，MAX 4096 x 2304@60Hz 1x HDMI，MAX 4K/2K@60Hz |
| LAN | 2x LAN，Intel®i210 GBE 1xLAN，Realtek RTL8111H GbE | |
| COM | 1x RS-232/422/485，1xRS-232 | |
| USB | 3x USB3.0；1xUSB2.0 | |
| DIO | 8DI；8DO | |
| Light Source | 2Light Source&Trigger | |
| Others | Remote | Support remote switching, integrated in the power supply part |
| Reset | Support BIOS reset by long-pressing the power button when shutdown | |
| Internal Expansion | USB | 1xInternal USB2.0(Pin)，1xUSB2.0 Type-A |
| M.2 | 1xM.2 3042/3052，support 4G/5G；1xM.2 2230，support WIFI | |
| SIM | 1x Nano SIM | |
| System | OS | Windows10/11 centos 8，ubuntu 20.04/22.04 |
| Power supply | Input voltage | 24V DC IN，4PIN Phoenix |
| Power | MAX 60W | |
| Mechanical parameters | Installation | Wall-mounted installation (rail optional) |

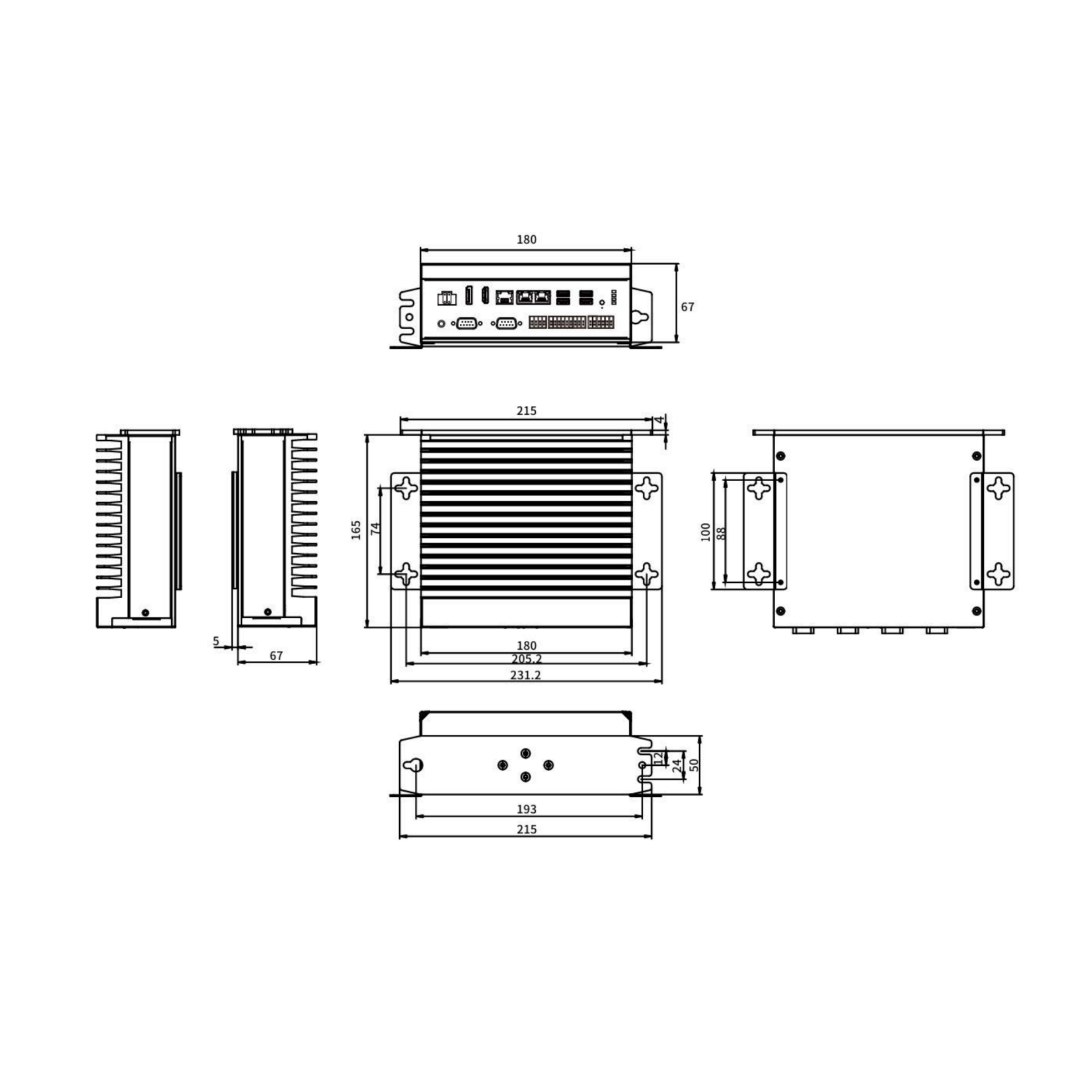

| Dimensions | 180x165x67mm | |
| Net weight | 2kg | |
| Environmental parameters | Operating temperature | 0~50oC，with an air flow of 0.7 meters per second |
| Storage temperature | -20oC~60oC，60oC@95%（non-condensing） | |
| Relative humidity | 10~95%@40oC(non-condensing) | |
| EMC | CE、FCC | |
| Ordering Information | |||||
| Model | CPU | MEM | SSD | HDD(2.5") | Expansion module |
| HM313-N9XXX | N97 | 8G/16G | 128G/256G/512G/1T/2T | / | WIFImodule/5Gmodule |
| HM313-S3XXX | I3-N305 | 8G/16G | 128G/256G/512G/1T/2T | / | WIFImodule/5Gmodule |
