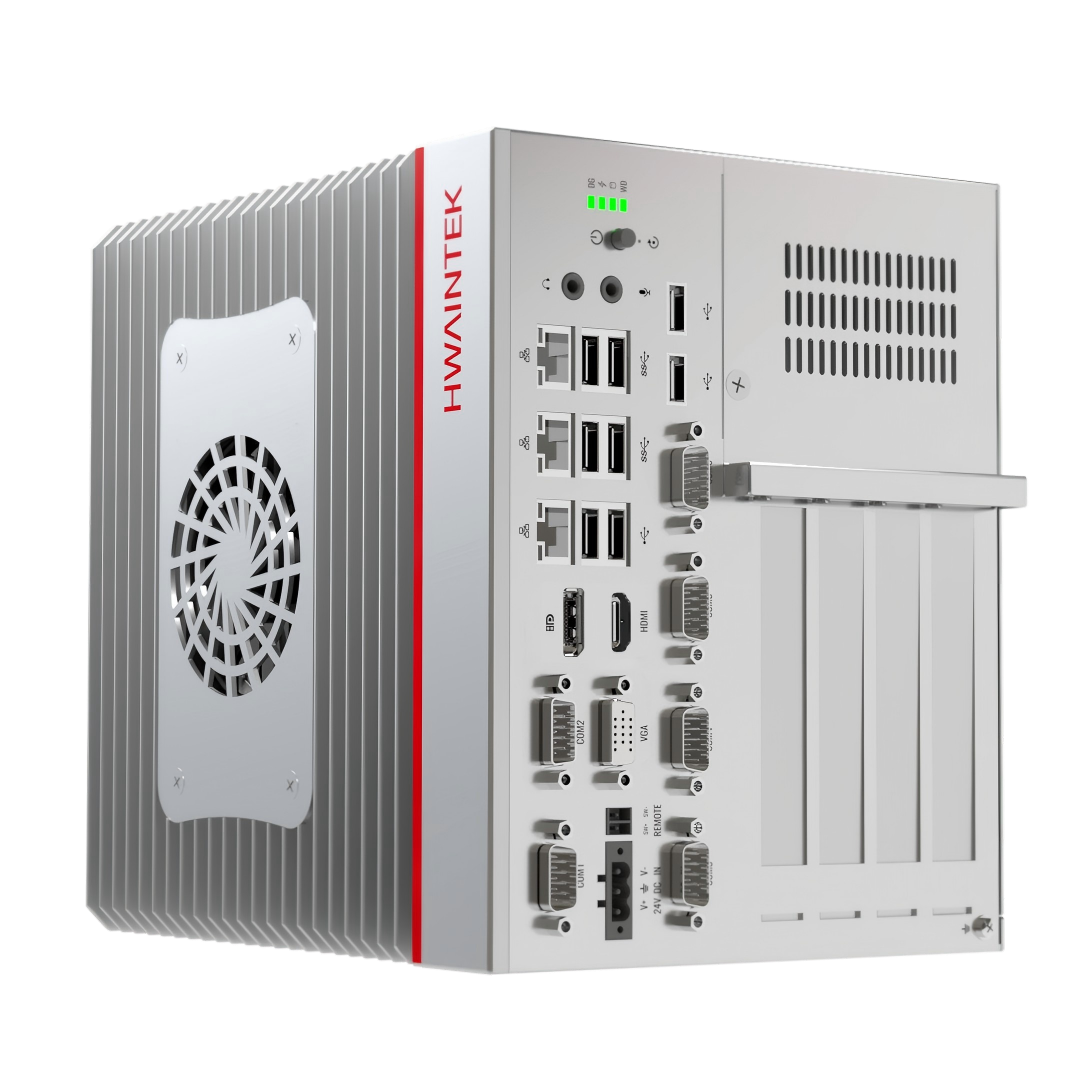

Intel® 12th~14th Gen Core™ Processors，i7-12700/i7-13700/i7-12700K/i9-12900/i9-13900、3x LAN、1x RS-232/422/485；3x RS-232/485；2x RS-232
Machine vision AI computing/GPU defect inspection/Multi-axis motion control/High-speed data acquisition/Industrial AI workstation/OLED production control/Automation test equipment/High-frame-rate image processing/Industrial signal analysis/Deep learning
| Product Parameters | ||
| System parameters | CPU | Intel® 12th~14th Gen Core™ Processors，i7-12700/i7-13700/i7-12700K/i9-12900/i9-13900 |
| Chipset | H610/Q670 | |
| BIOS | AMI 128Mbit SPI Flash | |
| Memory | 2 x SO-DIMM DDR5，Max 64GB | |
| Storage | H610(Default)：1 x M.2 2280 SSD (SATA)；Q670/H670：1 x M.2 2280 SSD (SATA)，Optional modification 2 x SATA，Q670/H670 suppot RAID 0/RAID 1，BIOS switch； | |
| External I/O | Display | 1x DP 1.4a，MAX 4096 x 2304@60Hz； 1x HDMI 2.0b，MAX 4096 x 2160@30Hz； 1x VGA，MAX 1920 x 1200@60Hz |
| Ethernet | 1x LAN，Intel® I219; 2x LAN，Intel® I210 | |
| COM | 1x RS-232/422/485；3x RS-232/485；2x RS-232 | |
| USB | H610(Default)：4 x USB3.2 (2 x GEN1， 2 x GEN2)，4 x USB2.0；Q670/H670：6 x USB3.2 (GEN2)，2 x USB2.0 | |
| Audio | 1x Line-out、1x Mic-in | |
| Other | Remote | Support remote switch |
| Reset | Support long - press restart | |
| Internal Expansion | USB | 1x USB2.0，Type-A |
| M.2 | 1 x M.2 2230 Supports Wi-Fi ( supports PCIe )；H610(Default)：1 x M.2 3042 supports 4G；Q670/H670：1 x M.2 3052 supports 4G/5G； | |
| SIM | 1x NANO SIM | |
| PCIe | 1x PCIe 5.0 x16， 1x PCIe 4.0 x4(x2 signal) | |
| PCI | 2x PCI slot | |
| System | OS | Windows 10/11，centos 8， ubuntu 20.04/22.04 |
| Power supply | Input voltage | DC 24V (Optional 9-36V Configuration) |
| Power consumption | 240W | |
| Mechanical parameters | Installation | wall-mounted installation |

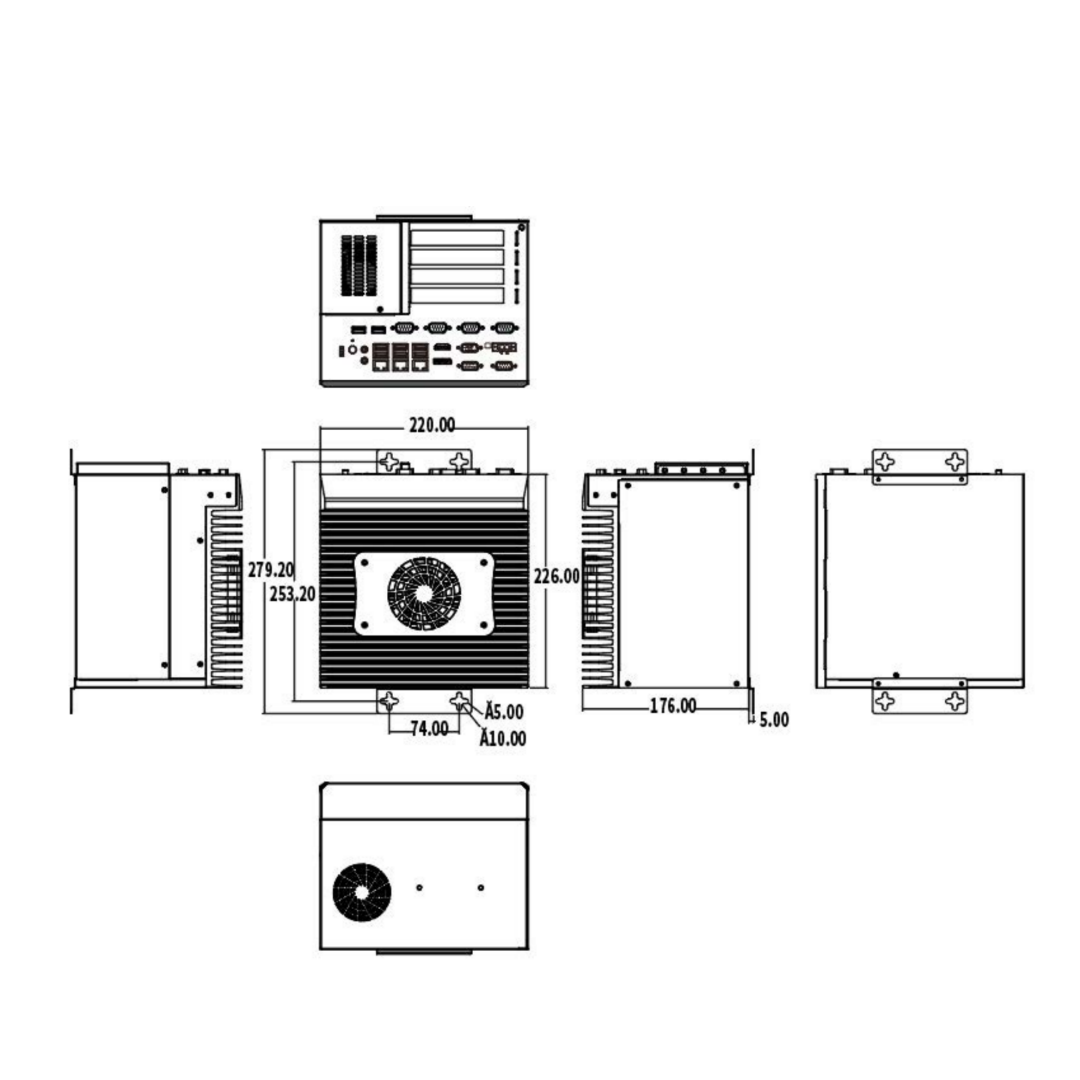

| Dimensions | 220 x 226 x 176mm (LxWxH) | |
| Net weight | 4.3kg | |
| Environmental parameters | Operating temperature | 0~50°C |
| Storage temperature | -20°C ~60°C | |
| Relative humidity | 10 ~ 95% @ 40°C (non-condensing) | |
| EMC | CE、FCC | |
| Ordering information | |||||
| Model | CPU | MEM | SSD(M.2) | SSD(2.5") | Expansion Module |
| HC8014-C12XXX | i5-12400 | 8G/16G /32G /8G*2 /16G*2 /32G*2 DDR5 | 128G/256G/512G/1T | 512G/1T/2T/4T | 4G/WiFi |
| HC8014-M12XXX | i7-12700 | 128G/256G/512G/1T | 512G/1T/2T/4T | 4G/WiFi | |
| HC8014-A12XXX | i9-12900 | 128G/256G/512G/1T | 512G/1T/2T/4T | 4G/WiFi | |
