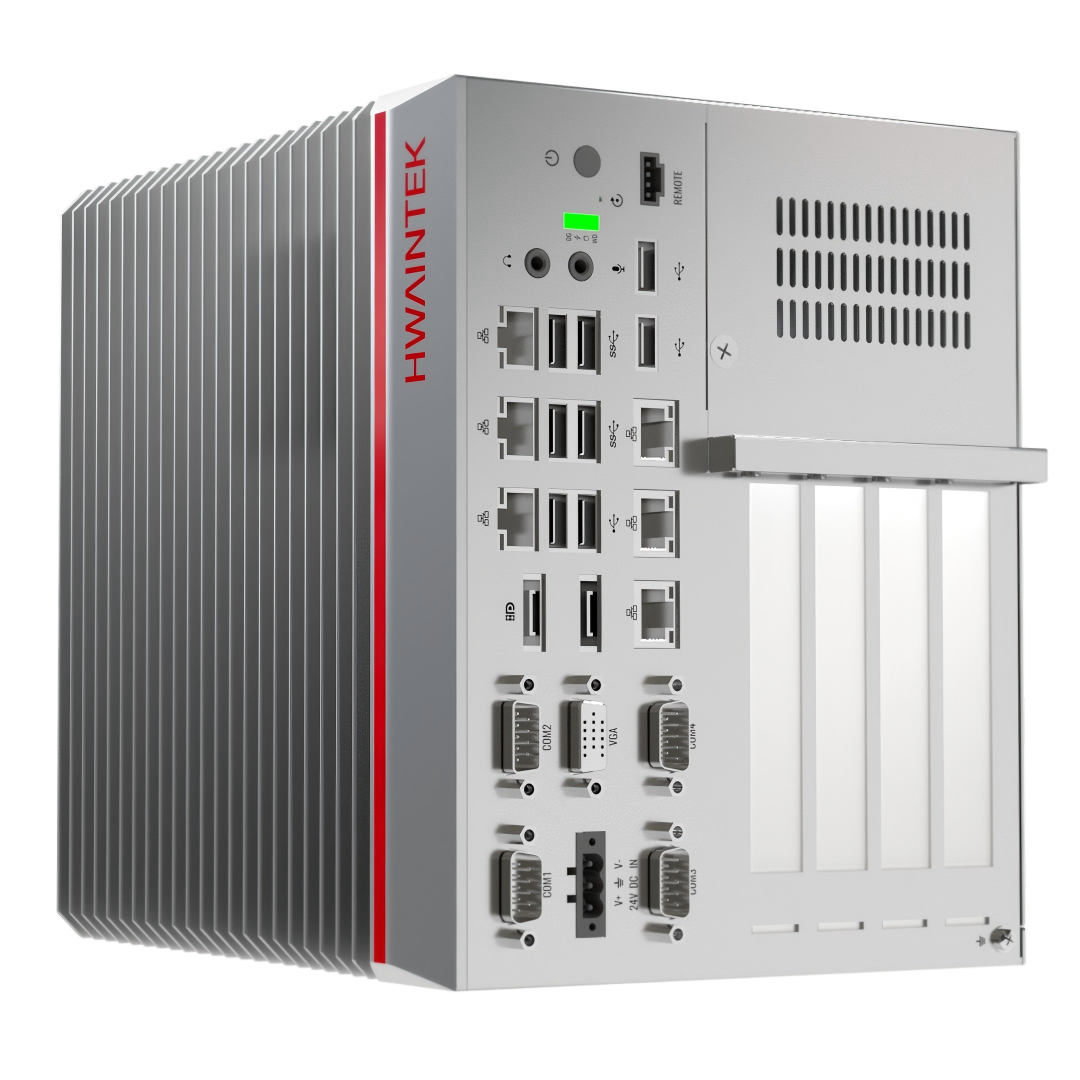

Intel® 6th~9th Gen Core™ Processors，i3-8100/i5-6400/i5-6500/i5-8400/i5-9400/i5-9500/i7-6700/i7-9700、6x LAN、1x RS-232；1x RS-232/422/485；2x RS-232/485
Machine vision AI computing/GPU defect inspection/Multi-axis motion control/High-speed data acquisition/Industrial AI workstation/OLED production control/Automation test equipment/High-frame-rate image processing/Industrial signal analysis/Deep learning
| Product Parameters | ||
| System parameters | CPU | Intel® 6th~9th Gen Core™ Processors，i3-8100/i5-6400/i5-6500/i5-8400/i5-9400/i5-9500/i7-6700/i7-9700 |
| Chipset | H110 | |
| BIOS | AMI 64Mbit UEFI | |
| Memory | 2x SODIMM DDR4，MAX 64GB | |
| Storage | 1x M.2 M-Key 2280，SATA 3.0; 3x SATA | |
| External I/O | Display | 2x DP，MAX 4096 x 2304@60Hz； 1x VGA，MAX 1920 x 1080@60Hz； DP+DP/DP+VGA Independent dual display |
| Ethernet | 1x LAN，Intel® I219LM Support Wake-on-LAN； 5x LAN，Intel® I210AT | |
| COM | 1x RS-232；1x RS-232/422/485；2x RS-232/485 | |
| USB | 4x USB3.0；4x USB2.0 | |
| Audio | 1x Line-out、1x Mic-in，Realtek ALC662 | |
| Other | Remote | 1xREMOTE |
| Reset | Support BIOS reset by long-pressing the button during shutdown | |
| Internal Expansion | USB | 1xUSB2.0，Type-A |
| MiniPCIe | 1x Full size miniPCIe，support WLAN/WWAN | |
| SIM | - | |
| PCIe | 1x PCIe 16x（3.0）；1x PCIe 4x（2.0，x2signal） | |
| PCI | 2 x PCI | |
| System | OS | Windows 7(Only 6th generation)Windows 10， centos 7/8， ubuntu 18.04~24.04 etc. |
| Power supply | Input voltage | 24V DC IN (Optional 9-36V configuration) |
| Power | MAX 120W | |
| Mechanical parameters | Installation | wall-mounted installation |

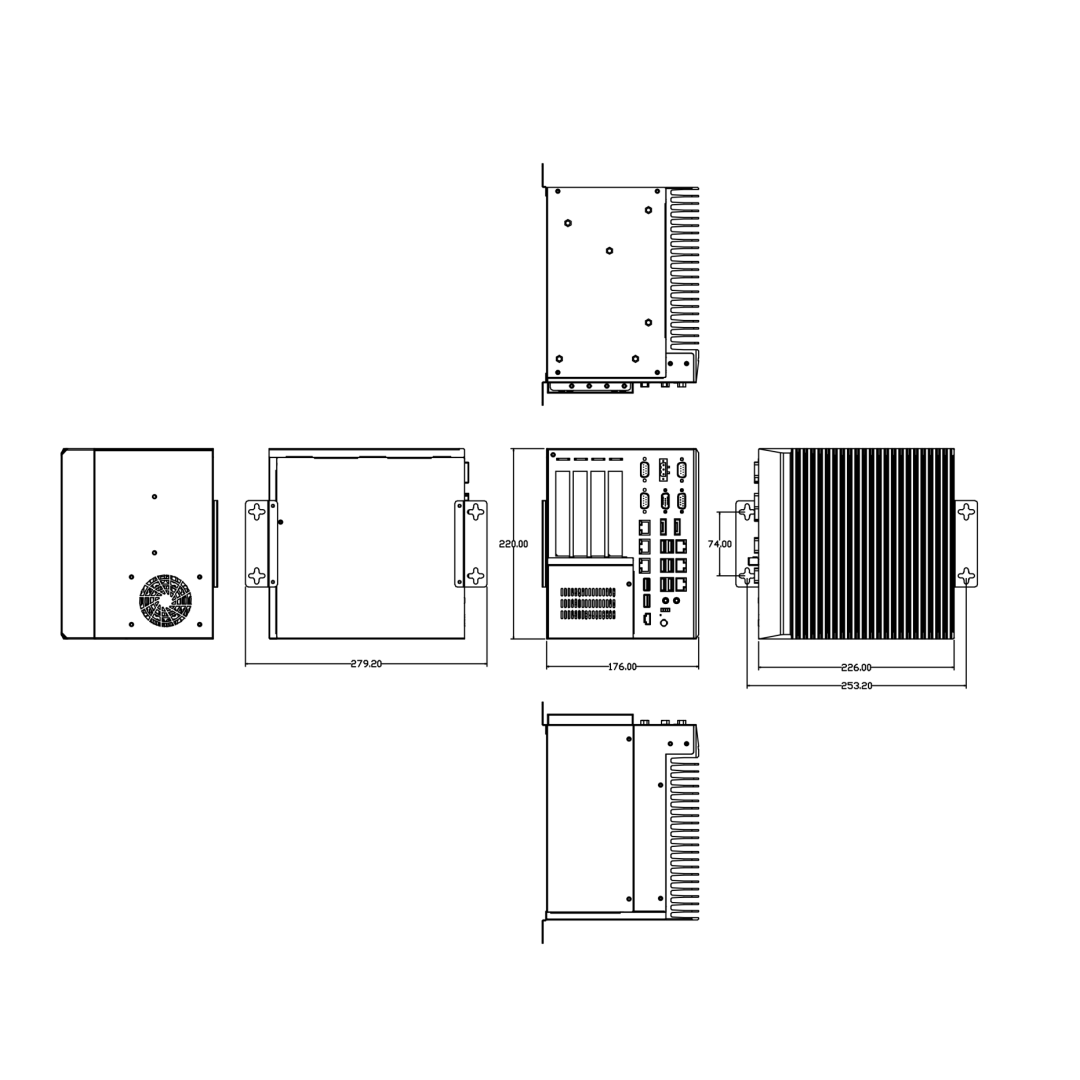

| Dimensions | 220x226x176mm | |
| Net weight | 4.3kg | |
| Environmental parameters | Operating temperature | 0~50°C，with an airflow of 0.7 m/s |
| Storage temperature | -20°C ~60°C， 60°C @ 95% (non-condensing) | |
| Relative humidity | 10 ~ 95% @ 40°C(non-condensing) | |
| EMC | CE、FCC | |
| Ordering information | |||||
| Model | CPU | MEM | SSD(M.2) | SSD(2.5") | Expansion Module |
| HC6124-C6XXX | i5-6400 | 8G /16G /32G /8G*2 /16G*2 | 128G/256G/512G/1T | 512G/1T/2T | WIFI/4G |
| HC6124-C8XXX | i5-8400 | 128G/256G/512G/1T | 512G/1T/2T | WIFI/4G | |
| HC6124-C9XXX | i5-9400 | 128G/256G/512G/1T | 512G/1T/2T | WIFI/4G | |
| HC6124-M6XXX | i7-6700 | 128G/256G/512G/1T | 512G/1T/2T | WIFI/4G | |
| HC6124-M9XXX | i7-9700 | 128G/256G/512G/1T | 512G/1T/2T | WIFI/4G | |
