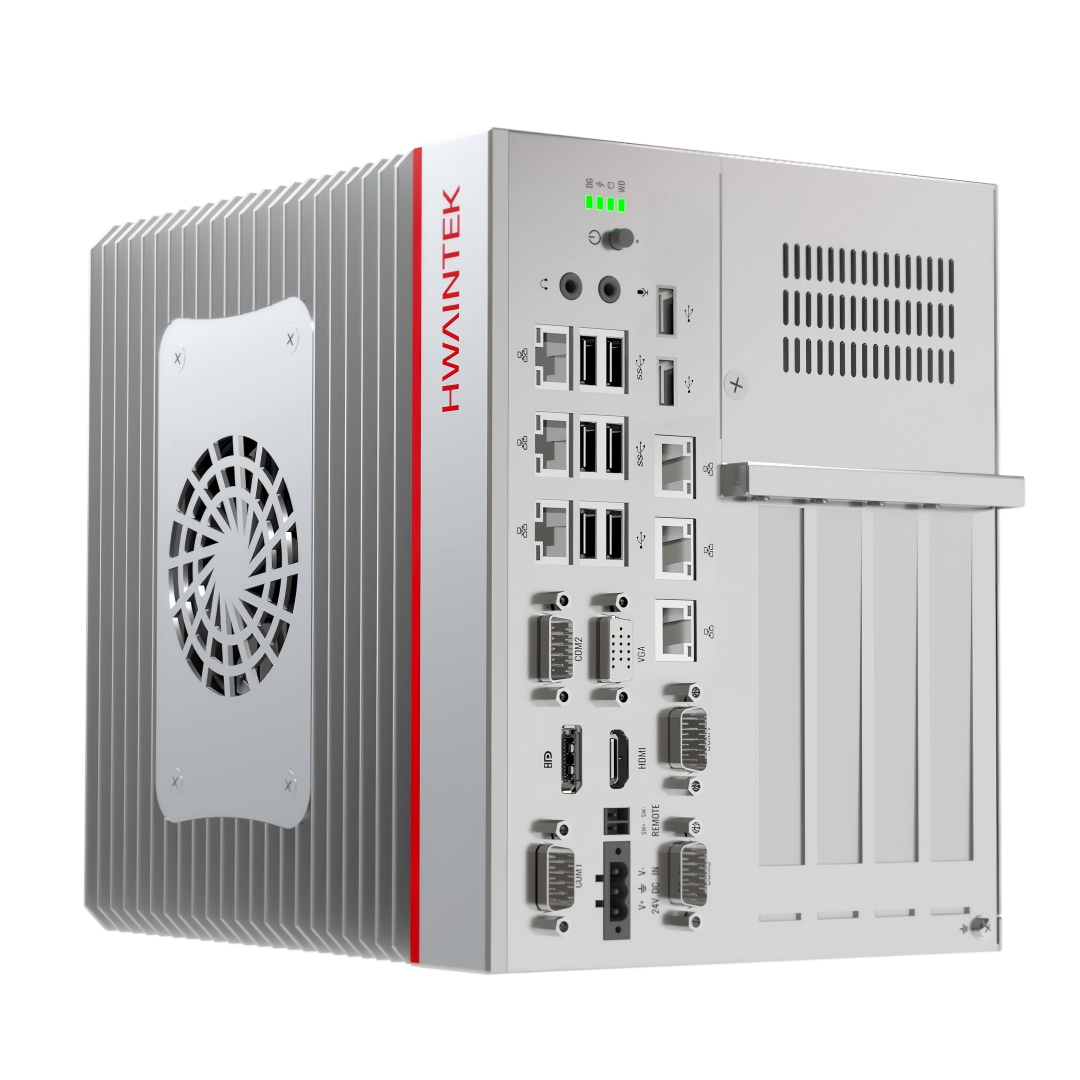

HC7224

Product Parameters
System parameters	CPU	Intel® 10th~11th Gen Core™ Processors，i5-10400/i7-10700
	chipset	H420E/H470
	BIOS	AMI 128Mbit UEFI
	memory	2 x SODIMM DDR4，MAX 64GB
	storage	H420E(Default):2×M.22280 SSD(SATA); Q470/H470:2xM.22280 SSD(SATA),support RAIDO/RAID1,BIOS switch
External I/O	display	1x DP1.4，MAX 4096 x 2304@60Hz； 1x HDMI1.4，MAX 4096 x 2160@30Hz； 1x VGA，MAX 1920 x 1200@60Hz H420E(Default):Dual independent display Q470/H470:Triple independent display
	Ethernet	1x LAN，Intel® I219LM； 5x LAN，Intel® I210AT
	COM	1x RS-232；1x RS-232/422/485；2 x RS-232/485
	USB	H420E(Default):4x USB3.0；4x USB2.0 Q470/H470：6 x USB3.0， 2 x USB2.0
	Audio	1x Line-out、1x Mic-in，Realtek ALC662
Other	REMOTE	1x Remote switch
Other	RESET	Support long - press restart
Internal Expansion	USB	1x USB2.0，Type-A
	M.2	H420E(Default):2×M.22280 SSD(SATA); Q470/H470:2xM.22280 SSD(SATA),support RAIDO/RAID1,BIOS switch
	SIM	1x Nano SIM
	PCIe	1 x PCIe 16x（3.0）；1 x PCIe 4x (3.0，x2 signal)
	PCI	2 x PCI
System	OS	Windows 10 IoT LTSC、Linux
Power supply	input voltage	24V DC IN，(Optional 9-36V Configuration)
Power supply	power consumption	MAX 180W
Mechanical parameters	installation	wall-mounted installation

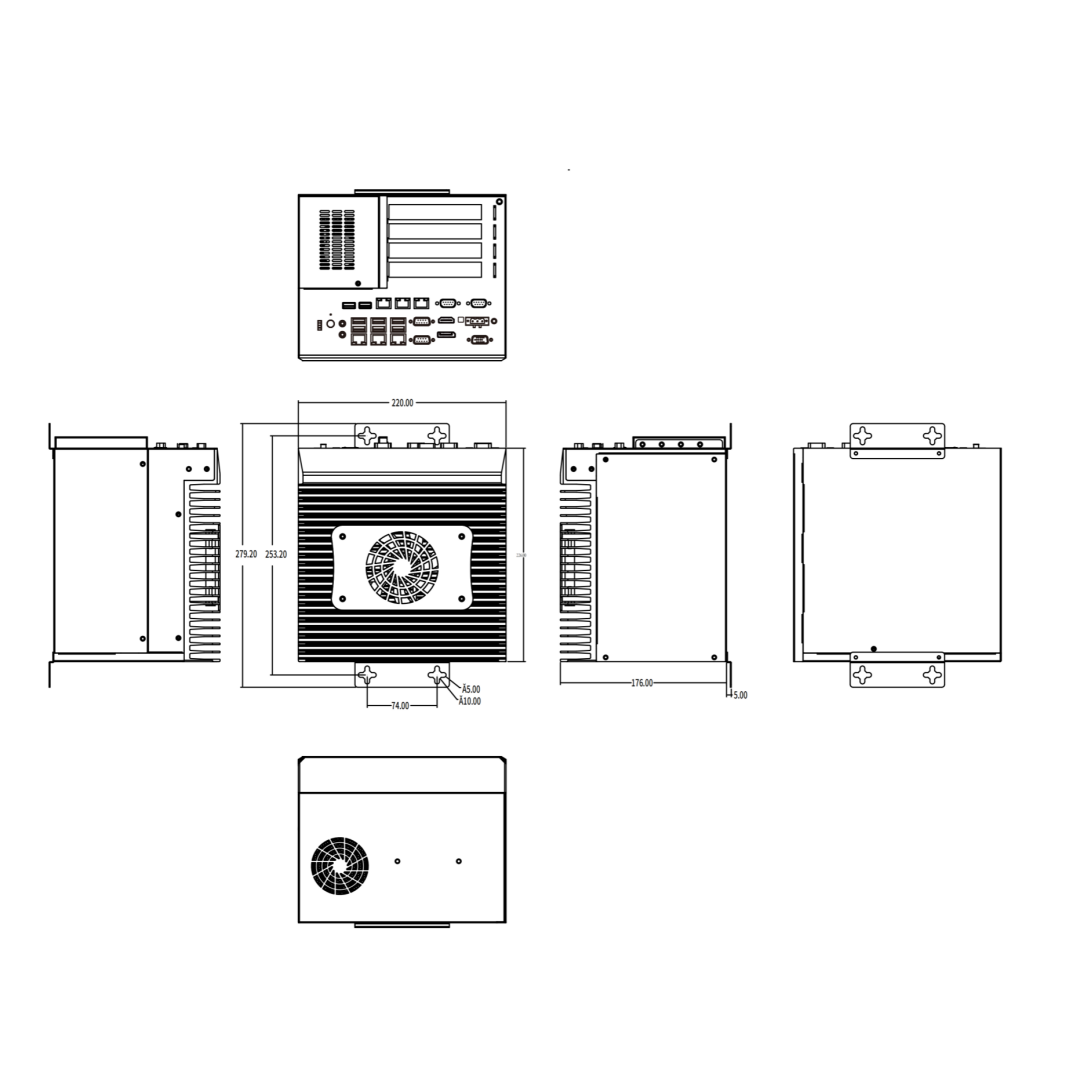

	dimensions	220 x 226 x 176mm
	net weight	4.3kg
Environ- mental parameters	operating temperature	0~50°C，with 0.7 m/s airflow
	storage temperature	-20°C ~60°C， 60°C @ 95% (non-condensing)
	relative humidity	10 ~ 95% @ 40°C (non-condensing)
	EMC	CE、FCC
