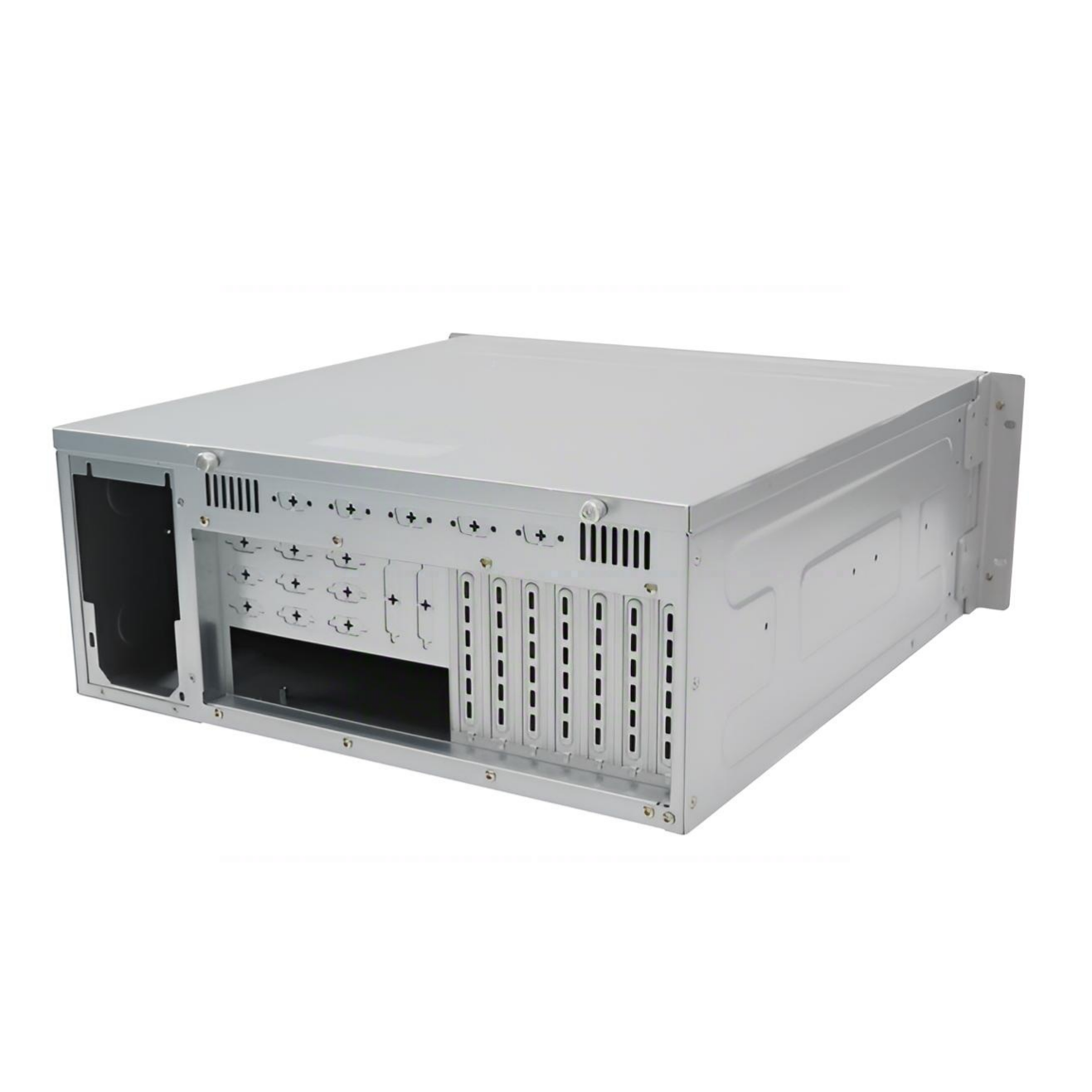

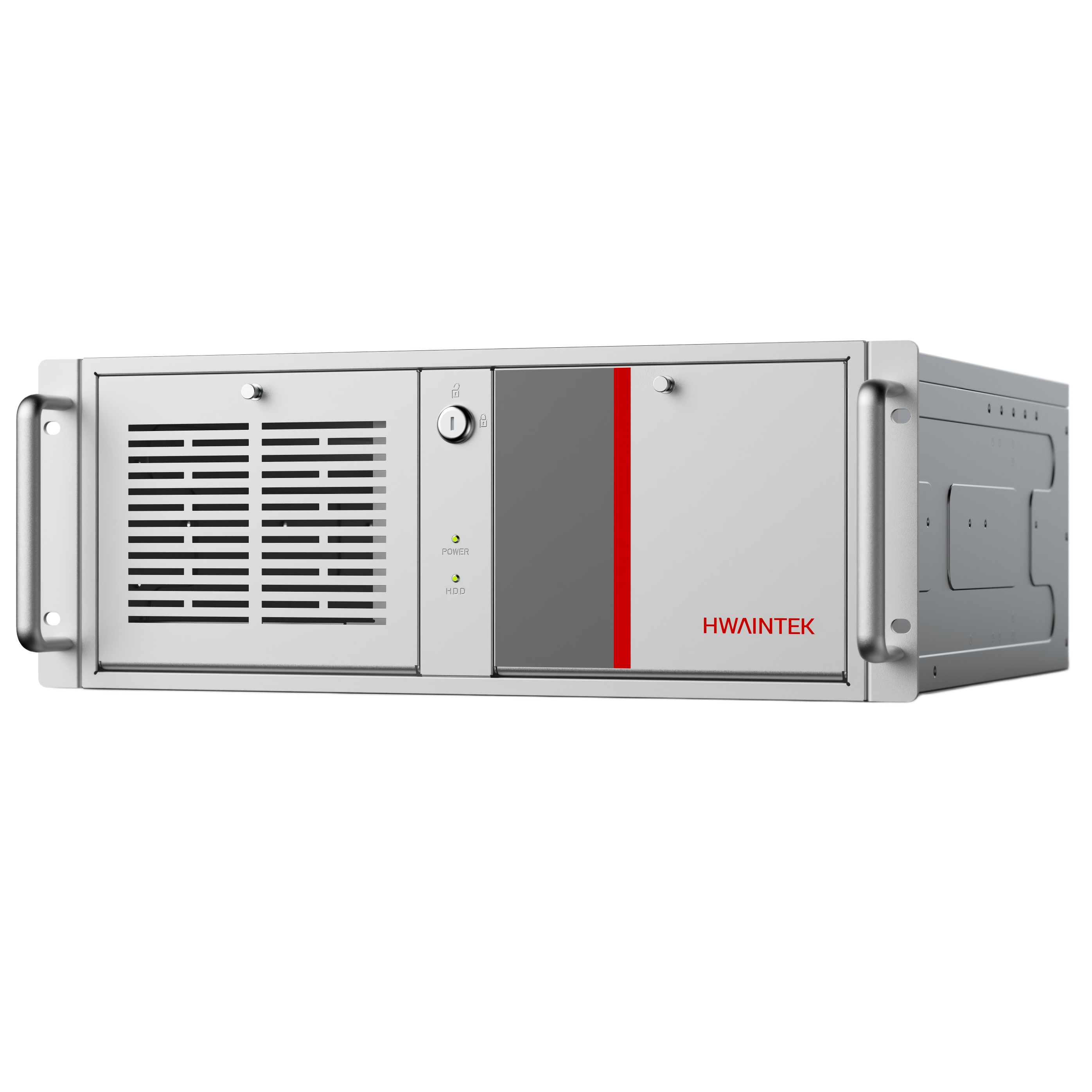

HRC-UA-Q270

Intel® 6/7/8/9 CoreTM、2x LAN、1x RS-232；Expandable 2x RS-485/232、3x RS232

Product Parameters
System Parameters	CPU	Intel^® 6/7/8/9 Core^TM
	Chipset	Q270
	BIOS	AMI UEFI BIOS，Support Watchdog Timer
	Memory	2x UDIMM DDR4，MAX 64GB
	Storage	1 x M.2 M-Key 2242/2280，SATA 3.0/PCIe 3.0；4 x SATA
External I/O	Display	1x HDMI，MAX 4096 x 2160@24 Hz; 1x DVI-D，MAX 1920 x 1200@60Hz； 1x VGA，MAX 1920 x 1200@60Hz
	LAN	1x LAN，Intel^® I219LM; 1x LAN，Intel^® I225-V
	COM	1x RS-232；Expandable 2x RS-485/232、3x RS232
	USB	4x USB3.0；4x USB2.0
	Audio	1x Line-in、1x Line-out、1x Mic-in, Realtek Audio HDA Codec
Internal Expansion	USB	1x USB2.0 ，Type-A
	MiniPCIe	1x miniPCIe，Optional 3G/4G/WIFI
	SIM	1x SIM
	PCIe	1x PCIe 16x or 8x（3.0）； 1x PCIe 16x or 8x（3.0）； 3x PCIe 4x（3.0）
	PCI	2 x PCI
System	OS	Windows, Linux
Power Supply	Input voltage	220V AC IN，Three-hole pin plug
Power Supply	Power supply	300/650/1000W，ATX
Mechanical parameters	Installation	rack-mounted industrial computer standard
	Dimension	176x430x471.4mm（HxWxD）
	Net weight	11.8kg
Environmental parameters	Operating temperature	0~60°C，With 0.7ms airflow
	Storage temperature	-25°C ~70°C， 60°C @ 95% ( non-condensing )
	Relative humidity	10 ~ 95% @ 40°C ( non-condensing )
	EMC	CE、FCC

Ordering information
Model	CPU	MEM	SSD(M.2)	SSD(2.5")	HDD(3.5")	Expansion Module
HRC-UA-Q270/I5-6500	I5-6500	8G/16G /32G /8G2 /16G2 /32G*2	128G/256G/512G/1T	512G/1T/2T/4T	1T/2T/4T /8T/10T/12T /16T/18T/20T /22T/24T	4G/WiFi
HRC-UA-Q270/I5-9500	I5-9500		128G/256G/512G/1T	512G/1T/2T/4T		4G/WiFi
HRC-UA-Q270/I7-6700	I7-6700		128G/256G/512G/1T	512G/1T/2T/4T		4G/WiFi
HRC-UA-Q270/I7-8700	I7-8700		128G/256G/512G/1T	512G/1T/2T/4T		4G/WiFi
HRC-UA-Q270/I7-9700	I7-9700		128G/256G/512G/1T	512G/1T/2T/4T		4G/WiFi
